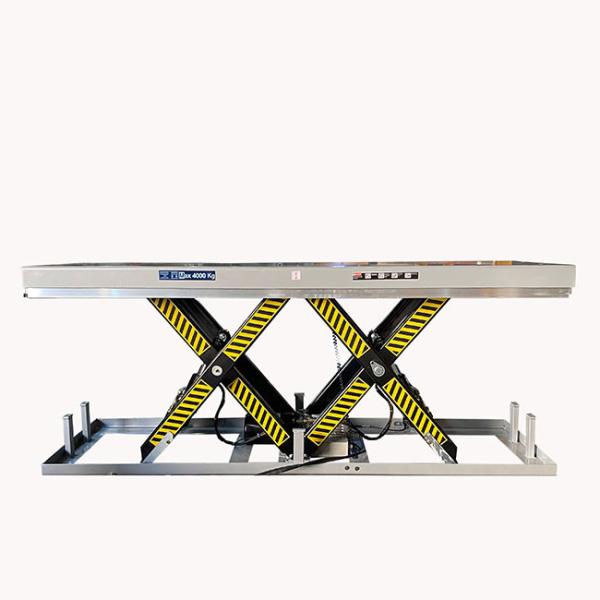

4 Ton Heavy Duty Scissor Lift Platform

Brand Name : JS

Model Number : HW4000DL

Certification : CE,SGS

Place of Origin : China

MOQ : 10 set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 2000 sets per month

Packaging Details : Carton package and Pallet package

Product name : Stationary Heavy Duty Scissors Lift Table

Material : High strength steel

Rated loading capacity : 4tons

Lift drive / actuation : Electric Motor

Warranty : 1 year

Core Components : Pressure vessel, Motor

After-sales service provided : Free Spare Parts During Waranty

Weight : 360kg

Min/Max Height : 230/1000mm

Color : Green, Yellow, Customized

Feature : Easy Operation Safety Convenience

Keywords : Double Scissor lift tables

Contact Now

2023 New Arrival Professional Double Horizontal Scissor Max Load Capacity 4ton Heavy Duty Scissor Lift Tables

Horizontal Electric Double Scissor Lift Tables

The JIASHENG Extra-long load is designed with two or more sets of scissors placed end to end to achieve the desired platform length and lifting capability. In principle, this series consists of several pairs of Jiasheng single scissors. Lift loads easily with our electro-hydraulic lifting platform - perfect for handling or positioning loads at convenient working heights.

Easily lift loads with our electric-hydraulic lift tables - perfect for handling or positioning loads at a convenient working height. This model could add High quality PVC corrugated skirt

Model
Unit
HD2000L
HD4000L
HD8000L
Rated Lifting Capacity
Kg
2000
4000
8000
Platform Size
mm
2500x820
2500x850
3000x1200
Base Size
mm
2460x640
2450x785
2500x900
Min/Max Height
mm
205/1000
230/1000
300/1050
Elevating Time
s
26-36
36-46
40-50
Power Parameters
380V/50Hz
380V/50Hz
380V/50Hz
N.W.
Kg
265
360
560

4000kgs Heavy Duty Double Horizontal Scissor Lift Tables

Easily lift loads with our electric-hydraulic lift tables - perfect for handling or positioning loads at a convenient working height.

4 Ton Heavy Duty Scissor Lift Platform

Compact steel frame

Standard steel frame with standard thickness to keep steel frame stability.

4 Ton Heavy Duty Scissor Lift Platform

Cylinder

Double pistion with double scissor could be equipped with Ultra plaform to suitable for desire application.
Lift tables; Double scissor lift tables, Heavy duty horizontal Scissor Lift tables
4 Ton Heavy Duty Scissor Lift Platform
Assemble and workshop
4 Ton Heavy Duty Scissor Lift Platform

4 Ton Heavy Duty Scissor Lift Platform

Scan the QR code to contact us for quick reply for the double scissor lift tables

4 Ton Heavy Duty Scissor Lift Platform
