CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table

Brand Name : JS

Model Number : HQ500

Certification : CE,SGS

Place of Origin : China

MOQ : 10 set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 2000 sets per month

Packaging Details : Carton package and Pallet package

Problem Name : Stationary Scissor Lift Table

Material : High strength steel

Core Components : Pressure vessel

Keywords : Electric Hydraulic Scissor Lift Tables

After-sales service provided : Video Technical Support,Free Spare Parts During Waranty

Weight : 600kg

Condition : New

Min./Max lifting height : 80/480cm

Warranty of core components : 1 Year

Rated loading capacity : 500kgs

Max. lifting height : 4.8m

Feature : Easy Operation Safety Convenience

Application : Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Contact Now

Ce Approval Max Height 4.8M Hydraulic Rated Lifting Capacity 500Kg Electric Scissor Stationary Lift Tables

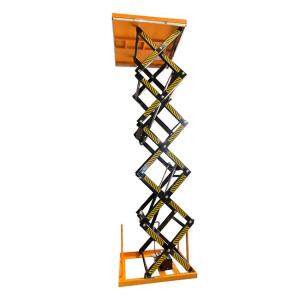

Stationary multi scissor electric lift table

The fixed heavy-duty multi-level platform provides excellent vertical lifting range and is lifted to a height between 800mm and 4800mm using an electro-hydraulic slide. The operator only needs to increase the working height of the workbench to raise the double shear elevator. Capable of handling loads up to 500kg, the five scissor lift tables are easy to use and move, making them ideal for use in engineering, storage, and manufacturing environments.

The stationary five Scissors Lift Tables with double pistion and Standard thickness steel make this Vertical lifting in powerful condition.Electric hydraulic pistion to raise the platform to heights between 600mm and 4210mm.

Model
Unit
HQ500
Rated Lifting Capacity
Kg
500
Min Height
mm
800
Max Height
mm
4800
Platform Size
mm
1400X1400
Base Size
mm
1400X1400
Elevating Time
s
30~40
Fall Time
s
30~40
Hydraulic Power
AC380V, 2.2KW
N.W.
kg
600
heavy duty scissor lift tables,double scissor lift,stationary scissor lift,1ton scissor lift tables, 1000kg hydraulic lifter, lift tables

Max height 4800mm five scissor lift tables

Powerful by Electric
Electric Stationary Scissor Lift Tables
3-phase support powerful in watt. Ideal technical design supply support lifting with multi scissors
CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table

Oil box

Superior Oil for hydraulic system to keep pistion perfect performance. elect
CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table

Standard thickness steel with Perfect Heavy-duty torsional steel frame heavy duty cylinder; Heavy Steel Legs

The stationary five Scissors Lift Tables with double pistion and Standard thickness steel make this Vertical lifting in powerful condition.or Lift tables
CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table
Standard hand control
This stationary scissor lift tables with standard hand control, which is easy to raise the ideal height what you want by Up and Down button. Standard hand control is with a safety wire.It is adjustable wire in length.
CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table
Assemble and workshop
CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table
CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table

Scan the QR code to contact us for quick reply for the scissor lift tables

CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table CE Max Height 4.8M 500Kg Electric Hydraulic Scissor Lift Table
